一、工具和软件
1.PP助手Mac版

2.iOS微信App(越狱) 6.6.7 - Mac PP助手下载

3.dumpcrypted - 砸壳

4.class-dump - 导出头文件

5.iOSOpenDev1.6-2 - 替换方法

6.insert_dylib - 动态注入方法

yololib - 动态注入

7.MachOView - 查看注入是否成功

8.iOS App Signer - 签名工具

二、资源和环境
1.macOS Hign Sierra 10.13.4

2.iOS11.2.1 和 iOS11.3.1

3.Xcode9.3.1

三、操作步骤
1.安装Mac PP助手;

2.在PP助手中下载越狱的微信app(在未连接手机的状态下在);

如果是从appstore上下载微信app，由于此时的app是经过加密的,则需要先进行砸壳;
如果是越狱的微信App,则不需要砸壳;

3.拷贝一份微信App,修改其后缀名：.ipa–>.zip,解压ZIP文件;

4.安装class-dump工具;

在命令终端输入:class-dump 可查看class-dump软件的使用命令;

5.使用class-dump指令获取微信头文件;

命令终端输入:
    class-dump -H xxxx(上述步骤3中解压的WeChat文件)/Payload/WeChat.app -o xxx(新建的文件夹-用于导出微信头文件)/WeChatHeaders
    eg:
    class-dump -H /Users/jingxiankeji_tao/Desktop/WeChat/Payload/WeChat.app -o /Users/jingxiankeji_tao/Desktop/WeChatHeaders

6.检查头文件是否导出正确:

查看导出的头文件夹:
    若CDStructures.h中无数据：
        1.还需要砸壳，工具有：AppCrackr、Clutch、dumpcrypted等，推荐dumpcrypted；
        2.当砸壳完毕后，使用 class-dump 仍然只导出 CDStructures.h一个文件，则可能架构选择错误，armv7对应的是iPhone5及以下的设备，arm64则是5s及以上的设备，所以微信也包含两个架构，armv7和arm64,使用如下命令:
            class-dump --arch armv7 xxxx/Payload/WeChat.app -H -o xxx/WeChatHeaders
    若存在11695个文件，则完成头文件的导出步骤;

7.定位相关的文件(步数或红包)

四、微信步数

1.定位于步数相关的文件

搜索头文件夹下的包含‘step’的文件
    WCDeviceStepObject.h

2.分析文件方法:用Xcode打开WCDeviceStepObject.h文件

#import "MMObject.h"

@class NSMutableArray;

@interface WCDeviceStepObject : MMObject
{
    ...
    unsigned int m7StepCount;
    unsigned int hkStepCount;
    ...
}

...
@property(nonatomic) unsigned int hkStepCount; // @synthesize hkStepCount;
@property(nonatomic) unsigned int m7StepCount; // @synthesize m7StepCount;
...

@end

分析：
    此处的两个属性get方法：判断HealthKit是否可用，并去获取其中数据;
    替换两个get方法即可修改微信运动的步数;

3.使用工具iOSOpenDev替换方法

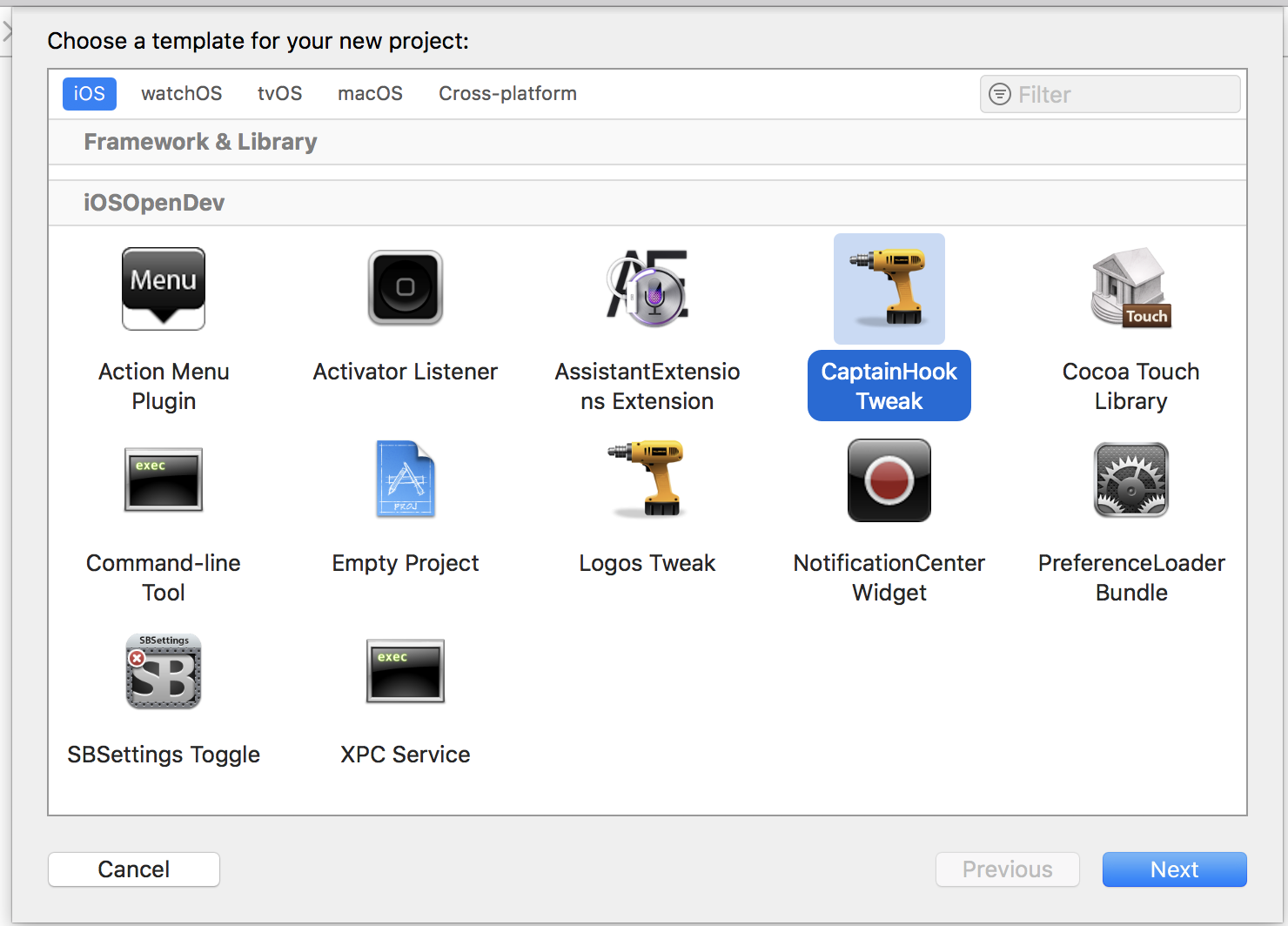

1.利用iOSOpenDev创建hook模版
    打开Xcode，进入创建一个新项目的菜单中，选择iOS-->iOSOpenDev --> CaptainHookTweak
2.在代码中修改上述的两个get方法，返回想要的数值
    在创建的项目XXX.mm文件中，具体修改如下:

    @class WCDeviceStepObject;

    CHDeclareClass(WCDeviceStepObject); // declare class

    CHOptimizedMethod(0, self, unsigned long, WCDeviceStepObject, m7StepCount)
    {
        return 20151207;
    }
    CHOptimizedMethod(0, self, unsigned long, WCDeviceStepObject, hkStepCount)
    {
        return 20151207;
    }

    CHConstructor // code block that runs immediately upon load
    {
        @autoreleasepool
        {
            CHLoadLateClass(WCDeviceStepObject);
            CHHook(0, WCDeviceStepObject, m7StepCount); // register hook
            CHHook(0, WCDeviceStepObject, hkStepCount); // register hook
        }
}

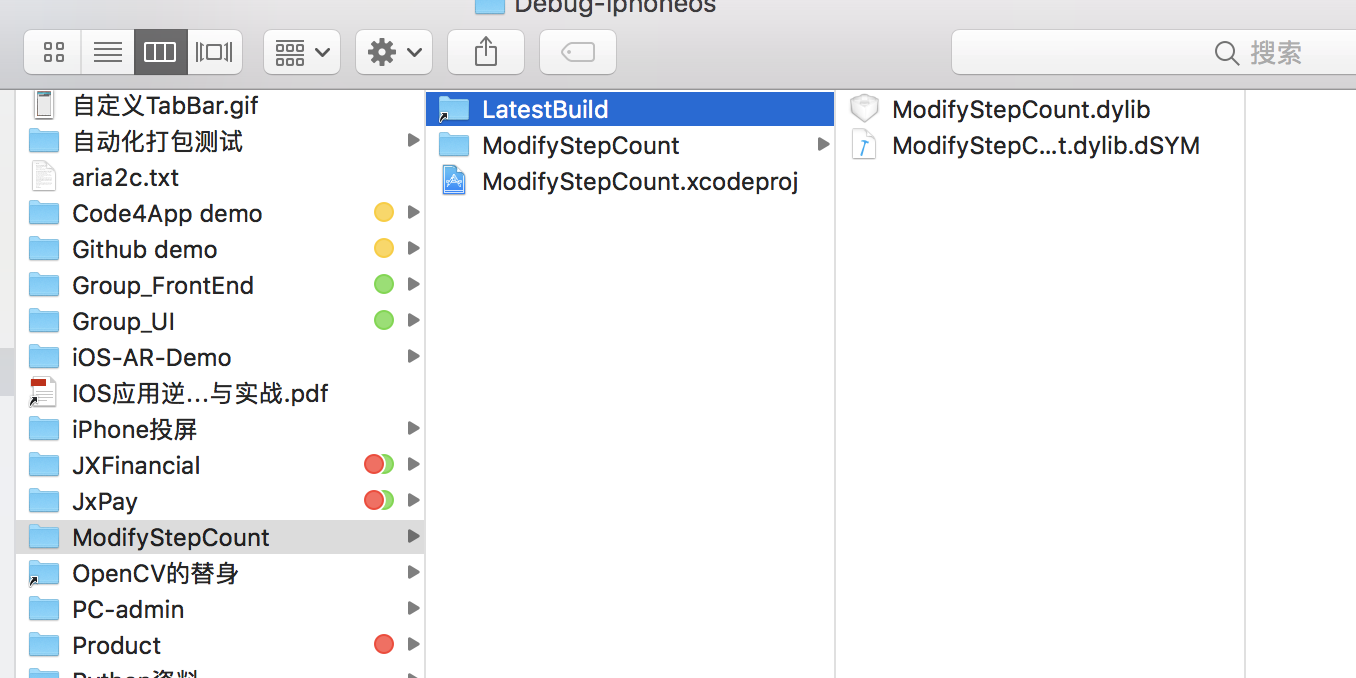

4.编译Xcode创建的项目ModifyStepCount

build xcode 生成 .dylib

5.用insert_dylib工具 动态库的地址注入Mach-O

insert_dylib使用方法：
    用xcode打开下载的insert_dylib项目，并编译，通过Xcode中的Products下 选中insert_dylib 右键 show in Finder
    将 insert_dylib 脚本拷贝到 /usr/local/bin 目录中
        不放到此目录中需要使用./insert_dylib，
        放在目录中后只需要使用insert_dylib

步骤：
    1.先将动态库ModifyStepCount.dylib 复制到 xx/Playload/WeChat.app 中;
    2.cd 到需要注入的包中：
        eg: cd xxx/xxx/Desktop/WeChat/Payload/WeChat.app/
    3.命令:
        insert_dylib @executable_path/ModifyStepCount.dylib WeChat
    4.会生成 WeChat_patched 二进制文件

        Binary is a fat binary with 2 archs.
        LC_CODE_SIGNATURE load command found. Remove it? [y/n] n
        LC_CODE_SIGNATURE load command found. Remove it? [y/n] n

6.用MachOView 工具 查看新的动态库是否已经被注入了

File --> Open --> xxx/WeChat/Payload/WeChat.app/Wechat_patched
Fat Binary --> Executable --> Load Commands --> LC_LOAD_DYLIB(ModifyStepCount.dylib)

7.修改 WeChat_patched –>WeChat 替换原来的文件，然后和ModifyStepCount.dylib 动态库一起放入WeChat.app中

在菜单栏上 File-->Open-->xxx/Payload/WeChat.app/WeChat

8.用iOS App Signer - 工具重签名并打包

用xcode打开 iOS App Signer，选择证书和签名
    可以新创建一个 个人账号生成证书 的 项目，用此证书重新签名
在iOS App Singer 上执行相关操作后生成一个IPA包，安装在手机上即可。

五、微信防撤回

#pragma mark - 微信防撤回
CHOptimizedMethod(1, self, void, CMessageMgr, onRevokeMsg, id, value1) {

}
#pragma mark - 微信步数
CHDeclareClass(WCDeviceStepObject); // declare class

CHOptimizedMethod(0, self, unsigned long, WCDeviceStepObject, m7StepCount)
{
    return 151207;
}
CHOptimizedMethod(0, self, unsigned long, WCDeviceStepObject, hkStepCount)
{
    return 151207;
}

__attribute__((constructor)) static void entry()
{
    //加载CMessageMgr类
    CHLoadLateClass(CMessageMgr);
    //hook AsyncOnAddMsg:MsgWrap:方法
    CHClassHook(2, CMessageMgr, AsyncOnAddMsg, MsgWrap);

    // 微信步数  CHLoadLateClass(WCDeviceStepObject);
    CHHook(0, WCDeviceStepObject, m7StepCount);
    CHHook(0, WCDeviceStepObject, hkStepCount);

    // 消息防撤回
    CHHook(1, CMessageMgr, onRevokeMsg);
}

六、微信红包

#pragma mark - 微信红包

/**
 *  插件功能
 */
static int const kCloseRedEnvPlugin = 0;
static int const kOpenRedEnvPlugin = 1;
static int const kCloseRedEnvPluginForMyself = 2;
static int const kCloseRedEnvPluginForMyselfFromChatroom = 3;

//0：关闭红包插件
//1：打开红包插件
//2: 不抢自己的红包
//3: 不抢群里自己发的红包
static int HBPliginType = 1;

#define SAVESETTINGS(key, value) { \
NSArray *paths = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES); \
NSString *docDir = [paths objectAtIndex:0]; \
if (!docDir){ return;} \
NSMutableDictionary *dict = [NSMutableDictionary dictionary]; \
NSString *path = [docDir stringByAppendingPathComponent:@"HBPluginSettings.txt"]; \
[dict setObject:value forKey:key]; \
[dict writeToFile:path atomically:YES]; \
}

//#define LOADSETTINGS(key) ({ \
//NSArray *paths = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES); \
//NSString *docDir = [paths objectAtIndex:0]; \
//if (!docDir){ return} \
//NSString *path = [docDir stringByAppendingPathComponent:@"HBPluginSettings.txt"]; \
//NSDictionary *dict = [[NSDictionary alloc] initWithContentsOfFile:path]; \
//if(!dict){ return} \
//NSNumber *number = [dict objectForKey:key]; \
//0
//})

CHDeclareClass(CMessageMgr);

CHMethod(2, void, CMessageMgr, AsyncOnAddMsg, id, arg1, MsgWrap, id, arg2)
{
    CHSuper(2, CMessageMgr, AsyncOnAddMsg, arg1, MsgWrap, arg2);
    Ivar uiMessageTypeIvar = class_getInstanceVariable(objc_getClass("CMessageWrap"), "m_uiMessageType");
    ptrdiff_t offset = ivar_getOffset(uiMessageTypeIvar);
    unsigned char *stuffBytes = (unsigned char *)(__bridge void *)arg2;
    NSUInteger m_uiMessageType = * ((NSUInteger *)(stuffBytes + offset));

    Ivar nsFromUsrIvar = class_getInstanceVariable(objc_getClass("CMessageWrap"), "m_nsFromUsr");
    id m_nsFromUsr = object_getIvar(arg2, nsFromUsrIvar);

    Ivar nsContentIvar = class_getInstanceVariable(objc_getClass("CMessageWrap"), "m_nsContent");
    id m_nsContent = object_getIvar(arg2, nsContentIvar);

    switch(m_uiMessageType) {
        case 1:
        {
            //普通消息
            //红包插件功能
            //0：关闭红包插件
            //1：打开红包插件
            //2: 不抢自己的红包
            //3: 不抢群里自己发的红包
            //微信的服务中心
            Method methodMMServiceCenter = class_getClassMethod(objc_getClass("MMServiceCenter"), @selector(defaultCenter));
            IMP impMMSC = method_getImplementation(methodMMServiceCenter);
            id MMServiceCenter = impMMSC(objc_getClass("MMServiceCenter"), @selector(defaultCenter));
            //通讯录管理器
            id contactManager = ((id (*)(id, SEL, Class))objc_msgSend)(MMServiceCenter, @selector(getService:),objc_getClass("CContactMgr"));
            id selfContact = objc_msgSend(contactManager, @selector(getSelfContact));

            Ivar nsUsrNameIvar = class_getInstanceVariable([selfContact class], "m_nsUsrName");
            id m_nsUsrName = object_getIvar(selfContact, nsUsrNameIvar);
            BOOL isMesasgeFromMe = NO;
            if ([m_nsFromUsr isEqualToString:m_nsUsrName]) {
                //发给自己的消息
                isMesasgeFromMe = YES;
            }

            if (isMesasgeFromMe)
            {
                if ([m_nsContent rangeOfString:@"打开红包插件"].location != NSNotFound)
                {
                    HBPliginType = kOpenRedEnvPlugin;
                }
                else if ([m_nsContent rangeOfString:@"关闭红包插件"].location != NSNotFound)
                {
                    HBPliginType = kCloseRedEnvPlugin;
                }
                else if ([m_nsContent rangeOfString:@"关闭抢自己红包"].location != NSNotFound)
                {
                    HBPliginType = kCloseRedEnvPluginForMyself;
                }
                else if ([m_nsContent rangeOfString:@"关闭抢自己群红包"].location != NSNotFound)
                {
                    HBPliginType = kCloseRedEnvPluginForMyselfFromChatroom;
                }

                SAVESETTINGS(@"HBPliginType", [NSNumber numberWithInt:HBPliginType]);
            }
        }
            break;
        case 49: {
            // 49=红包

            //微信的服务中心
            Method methodMMServiceCenter = class_getClassMethod(objc_getClass("MMServiceCenter"), @selector(defaultCenter));
            IMP impMMSC = method_getImplementation(methodMMServiceCenter);
            id MMServiceCenter = impMMSC(objc_getClass("MMServiceCenter"), @selector(defaultCenter));
            //红包控制器
            id logicMgr = ((id (*)(id, SEL, Class))objc_msgSend)(MMServiceCenter, @selector(getService:),objc_getClass("WCRedEnvelopesLogicMgr"));
            //通讯录管理器
            id contactManager = ((id (*)(id, SEL, Class))objc_msgSend)(MMServiceCenter, @selector(getService:),objc_getClass("CContactMgr"));

            Method methodGetSelfContact = class_getInstanceMethod(objc_getClass("CContactMgr"), @selector(getSelfContact));
            IMP impGS = method_getImplementation(methodGetSelfContact);
            id selfContact = impGS(contactManager, @selector(getSelfContact));

            Ivar nsUsrNameIvar = class_getInstanceVariable([selfContact class], "m_nsUsrName");
            id m_nsUsrName = object_getIvar(selfContact, nsUsrNameIvar);
            BOOL isMesasgeFromMe = NO;
            BOOL isChatroom = NO;
            if ([m_nsFromUsr isEqualToString:m_nsUsrName]) {
                isMesasgeFromMe = YES;
            }
            if ([m_nsFromUsr rangeOfString:@"@chatroom"].location != NSNotFound)
            {
                isChatroom = YES;
            }
            if (isMesasgeFromMe && kCloseRedEnvPluginForMyself == HBPliginType && !isChatroom) {
                //不抢自己的红包
                break;
            }
            else if(isMesasgeFromMe && kCloseRedEnvPluginForMyselfFromChatroom == HBPliginType && isChatroom)
            {
                //不抢群里自己的红包
                break;
            }

            if ([m_nsContent rangeOfString:@"wxpay://"].location != NSNotFound)
            {
                NSString *nativeUrl = m_nsContent;
                NSRange rangeStart = [m_nsContent rangeOfString:@"wxpay://c2cbizmessagehandler/hongbao"];
                if (rangeStart.location != NSNotFound)
                {
                    NSUInteger locationStart = rangeStart.location;
                    nativeUrl = [nativeUrl substringFromIndex:locationStart];
                }

                NSRange rangeEnd = [nativeUrl rangeOfString:@"]]"];
                if (rangeEnd.location != NSNotFound)
                {
                    NSUInteger locationEnd = rangeEnd.location;
                    nativeUrl = [nativeUrl substringToIndex:locationEnd];
                }

                NSString *naUrl = [nativeUrl substringFromIndex:[@"wxpay://c2cbizmessagehandler/hongbao/receivehongbao?" length]];

                NSArray *parameterPairs =[naUrl componentsSeparatedByString:@"&"];

                NSMutableDictionary *parameters = [NSMutableDictionary dictionaryWithCapacity:[parameterPairs count]];
                for (NSString *currentPair in parameterPairs) {
                    NSRange range = [currentPair rangeOfString:@"="];
                    if(range.location == NSNotFound)
                        continue;
                    NSString *key = [currentPair substringToIndex:range.location];
                    NSString *value =[currentPair substringFromIndex:range.location + 1];
                    [parameters setObject:value forKey:key];
                }

                //红包参数
                NSMutableDictionary *params = [@{} mutableCopy];

                [params setObject:parameters[@"msgtype"]?:@"null" forKey:@"msgType"];
                [params setObject:parameters[@"sendid"]?:@"null" forKey:@"sendId"];
                [params setObject:parameters[@"channelid"]?:@"null" forKey:@"channelId"];

                id getContactDisplayName = objc_msgSend(selfContact, @selector(getContactDisplayName));
                id m_nsHeadImgUrl = objc_msgSend(selfContact, @selector(m_nsHeadImgUrl));

                [params setObject:getContactDisplayName forKey:@"nickName"];
                [params setObject:m_nsHeadImgUrl forKey:@"headImg"];
                [params setObject:[NSString stringWithFormat:@"%@", nativeUrl]?:@"null" forKey:@"nativeUrl"];
                [params setObject:m_nsFromUsr?:@"null" forKey:@"sessionUserName"];

                if (kCloseRedEnvPlugin != HBPliginType) {
                    //自动抢红包
                    ((void (*)(id, SEL, NSMutableDictionary*))objc_msgSend)(logicMgr, @selector(OpenRedEnvelopesRequest:), params);
                }
                return;
            }

            break;
        }
        default:
            break;
    }
}

七、安装iOSOpenDev失败的解决方法

先重启Xcode，在Xcode中创建新项目中，查看菜单iOS中是否存在iOSOpenDev 一项内容

1.官方解决方法

1.在点击 安装iOSOpenDev软件的失败弹框 任意地方，使其成为Mac菜单即可;
2.Command + L 显示安装日志弹框;
3.在弹框的左上角选择 "显示所有日志";
4.滚动到日志底部，查看失败原因;
5.根据原因处理问题;

2.其他解决方法

八、其他
1.iOS可执行文件位置：

一般我们得到的iOS程序包是.ipa文件。其实就是一个压缩包，解压缩.ipa。解压缩后里面会有一个payload文件夹，文件夹里有一个.app文件，右键显示包内容，然后找到一个一般体积最大跟.app同名的文件，那个文件就是可执行文件；

参考资料：
1.非越狱微信步数和红包

2.非越狱iOS微信自动抢红包

3.非越狱iOS微信自动抢红包2

4.非越狱iOS修改微信步数

5.安装iOSOpenDev失败的解决方法

6.在非越狱平台进行越狱开发

7.iOS可执行文件分析工具MachoOView

8.yololib - 动态注入

9.insert_dylib的使用方法
